Concrete hydraulic shrinkage and restrained expansion of a concrete or mortar containing the expansive agent can be determined by using prism molds and length change measurement apparatus.
Measurement of Length Changes
Determination of Restrained Expansion of Mortar and Concrete. Three Gang Moulds
Used for determining the restrained expansion of a concrete or mortar containing expansive agent.
Standards UNI 8147 UNI 8148

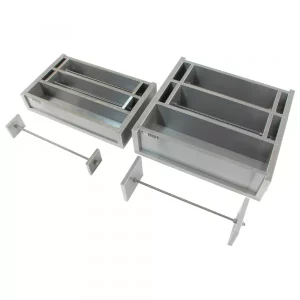

55-C0115/8, 55-C0115/81, 55-C0115/7, 55-C0115/71. Three gang moulds and spare parts
Description
Used for determining the restrained expansion of a concrete or mortar containing expansive agent. Made from steel. Each gang is complete with rods and restrained end plates.
55-C0115/7, 80x80x240 mm, conforming to UNI 8148
Weight approx.: 15 kg
55.C0115/8, 50x50x250 mm, conforming to UNI 8147
Weight approx.: 10 kg
55-C0115/7, 80x80x240 mm, conforming to UNI 8148
Weight approx.: 15 kg
55.C0115/8, 50x50x250 mm, conforming to UNI 8147
Weight approx.: 10 kg
Products
55-C0115/7
Three gang mould 80x80x240 mm UNI 8148
55-C0115/8
Three-gang mould 50 x 50 x 250 mm UNI 8147
Accessories
55-C0115/71
Set of two end plates with rod for 55-C0115/7
55-C0115/81
Set of two end plates with rod for 55-C0115/8
62-L0034/8
Rod 280 mm long
62-L0035/A
Length comparator digital version. Comprehends digital gauge with output for PC connection (special cable required) – reference bar not included
82-D1261/LINK
Serial cable for PC connection
Hydraulic Shrinkage Mould with Measurement Apparatus
This method is suitable for the determination of hydraulic axial shrinkage on concrete...
Standards UNI 11307 EN 12390-16
55-C0100/MB11, 55-C0115/3D, 55-C0115/11. Apparatus for hydraulic shrinkage measurement
Description
Shrinkage mould
This method is suitable for the determination of hydraulic axial shrinkage on concrete beams during hardening.
According to this method, steel pins shall be glued on the head surfaces of the specimen in order to measure the dimensional changes of specimens properly stored in temperature and specified humidity conditions. The test is performed with the 55-C0100/MB11 beam mould and the shrinkage measurement by the 55-C0115/3D apparatus.
Beam mould
Made of precisely machined cold finished steel , 100x100x500 mm
Weight approx.: 19 kg
Steel pins
To be glued on the beam ends surfaces
Shrinkage measurement apparatus
Metal stand, fitted with reference bar and digital gauge 25.4 x 0.001 mm, with output for PC. Cable not included. See accessories.
Weight approx. 14 kg
Products
55-C0100/MB11
Concrete beam mould 100x100x500mm
55-C0115/11
Steel pins for concrete shrinkage determination toUNI 11307. Pack of 10 pieces, to be glued on concrete beam
55-C0115/3D
Skrinkage measuring device for 100 x 100 x 500 mm specimens complete with digital gauge 25.4 x 0,001mm with output for PC connection (special cable required)
Accessories
82-D1261/LINK
Serial cable for PC connection
