Sample Preparation

Marking off machine 70-C0980/M
Steel specimens must be marked before performing the tensile test. After test completion, the two broken pieces of the specimen must be carefully fitted back together so that the respective axes lie in a straight line. The reference marks on the specimen will be at this point used for the determination of the elongations after breakage as per Standard specifications.

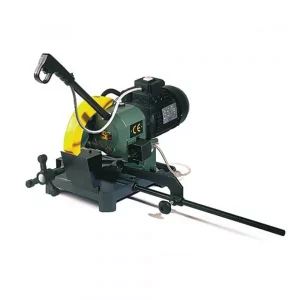

Cut off Machine

Used to cut the steel specimens to a suitable length for tensile testing.

Description



Used to cut the steel specimens to a suitable length for tensile testing. The cutting blade is not part of the machine and has to be ordered separately (see Accessories).
Main Features



  • Significantly improved ECU performance and innovation
  • The new Hydraulic Power Supply (HPS) uses inverter technology coupled with a high performance labyrinth bearing actuator to deliver 19 kN of force
  • Easy-to-use and ergonomic testing system
  • Interchangeable transducers and load cells with “plug and play” signal conditioners allowing for quick and easy transition of test set-ups
  • Clarity in results with the 3rd Generation Integrated Multi Axis Control System (IMACS2)
  • All-in-One computer control with the latest All-in-One touchscreen PC technology
  • Fully integrated and compact in design, a perfect solution for both static and mobile testing facilities
  • Data output is fully compatible with FHWA FlexMAT™ and FlexPAVE™ software
  • Optional air compressor that comes integrated



Products



70-C0974
Cut-off machine. 230V/50Hz/1Ph



Technical Specifications



  • Power: 750 W
  • Max. blade dimaeter: 225 mm
  • Overall dimensions: 660x570x600mm
  • Weight: 32 kg (approx.)
  • 230V, 50 Hz, 1 Ph
Accessories



70-C0974/1
Cutting blade 225 mm dia

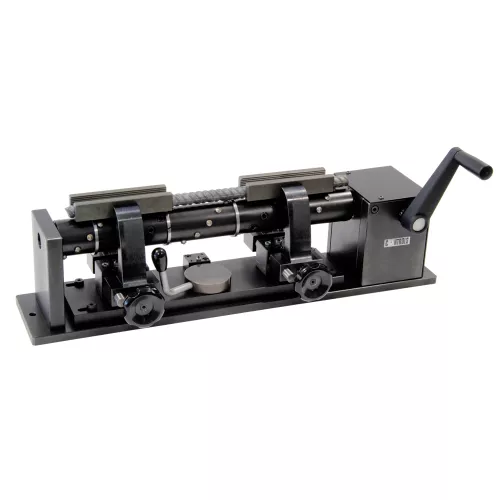

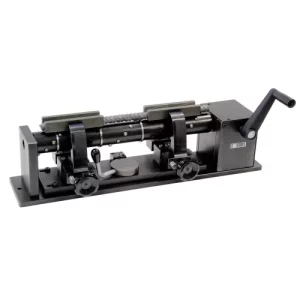

Marking off Machine

Used to mark off steel specimens before testing

Marking off machine 70-C0980/M
Description



This simple and useful machine is used to mark off steel specimens before tensile testing.
It is operated by rotating the handle.
The carriage holding the specimen moves laterally by 5, 10 or 20 mm steps and the tool marks off the specimen at the desired intervals.
Max specimen dia/thickness: 42mm

Overall dimensions: 600 x 300 x 360 mm (approx.)
Weight: 40 kg (approx.)
Products



70-C0980/M
Manual marking off machine allowing to mark spe- cimens up to 500 mm length every 5/10/20mm Maximum specimen thickness 42 mm.
